TFA48SH-64高温高压安全阀

产品型号：TFA48SH-64

发布时间：2016-11-22 14:32:38

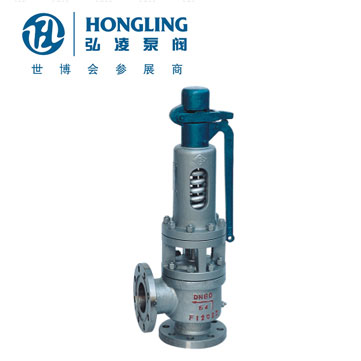

TFA48SH-64高温高压安全阀

查看产品实物图

下一个产品：A46F(Y)先导式安全阀

上一个产品：内装式安全阀TANA42F

分享到：

FA48SH-64高温高压安全阀型号：

TFA48Y-16C TFA48Y-40 TFA48Y-64 TFA48sB-64 TFA48Y-100 TFA48sB-100 TFA48Y-160 TFA48sB-160 TFA48Y-16I TFA48Y-40I TFA48Y-64I TFA48sB-64 TFA48Y-100I TFA48sB-100I TFA48sB-160I TFA48Y-16V TFA48Y-40V TFA48SH-40 TFA48Y-64V TFA48sB-64V TFA48Y-100V TFA48sB-100V TFA48TH-100 TFA48sB-160V

本阀门适用于工作温度“C型”≤425℃；“I型”≤500℃；“V型”≤550℃的蒸汽等介质设备或管路上，作为超压保护装置。连接法兰标准按JB/T……-94系列1、系列2。

FA48SH-64高温高压安全阀主要零部件材料

Materials for main parts
NO.	Name of part	C Materials	I Materials	V Materials
1	Body	WCB	ZG1Cr5Mo	ZG15Cr1Mo1V
2	Nozzle	2Cr13	1Cr18Ni9Ti	12Cr1MoVA
3	Adjusting ring	2Cr13	1Cr18Ni9Ti	1Cr18Ni9Ti
4	Disc	2Cr13	17-4PH	17-7PH
5	Guide sleeve	2Cr13	1Cr18Ni9Ti	1Cr18Ni9Ti
6	Radiator	ZG230-450	ZG230-450	ZG230-450
7	Bonnet	ZG230-450	ZG230-450	ZG230-450
8	Spring	50CrVA	50CrVA	50CrVA

FA48SH-64高温高压安全阀外形尺寸和连接尺寸

型号 Type	(DN)	do	D	g1	b	f	Z- d	DN'	D1	K1	g2	b1	f'	Z- d1	L	L1	H
TFA48Y-16C TFA48Y-16I TFA48Y-16V	40	25	150	85	18	3	4-18	50	165	125	100	20	3	4-18	120	115	540
	50	32	165	100	20	3	4-18	65	185	145	120	20	3	4-18	135	120	618
	65	40	185	120	20	3	4-18	80	200	160	135	20	3	8-18	160	140	710
	80	50	200	135	20	3	8-18	100	220	180	155	22	3	8-18	160	150	730
	100	65	220	155	20	3	8-18	150	285	240	210	24	3	8-23	225	175	892
	150	100	285	210	24	3	8-23	200	340	295	265	26	3	12-23	240	235	1,135
	200	125	340	265	26	3	12-23	250	405	355	320	30	3	12-26	290	210	1,135
TFA48Y-40 TFA48Y-40I TFA48Y-40V	25	16	115	65	16	2	4-14	32	140	100	78	18	2	4-18	110	95	429
	32	20	140	78	18	2	4-18	40	150	110	85	18	3	4-18	115	100	421
	40	25	150	85	18	3	4-18	50	165	125	100	20	3	4-18	120	115	540
	50	32	165	100	20	3	4-18	65	185	145	120	20	3	4-18	135	120	618
	65	40	185	120	22	3	8-18	80	200	160	135	20	3	8-18	160	140	710
	80	50	200	135	22	3	8-18	100	220	180	155	22	3	8-18	160	150	730
	100	65	235	160	24	3	8-23	150	285	240	210	24	3	8-23	225	175	892
	150	100	300	218	30	3	8-26	200	340	295	265	26	3	12-23	240	235	1,135
	200	125	375	282	38	3	12-30	250	405	355	320	30	3	12-26	290	310	1,135
TFA48Y-64 TFA48sB-64I TFA48Y-64I TFA48sB-64I TFA48Y-64V TFA48sB-64V	25	16	140	78	22	2	4-18	32	140	100	78	18	2	4-18	110	100	429
	32	20	155	82	24	2	4-23	40	150	110	85	18	3	4-18	130	110	421
	40	25	170	95	24	3	4-23	50	165	125	100	20	3	4-18	135	120	540
	50	32	180	105	26	3	4-23	65	185	145	120	22	3	8-18	160	130	618
	50	32	180	105	26	3	4-23	80	200	160	135	22	3	8-18	160	145	710
	65	40	205	130	28	3	8-23	80	200	160	135	22	3	8-18	175	160	710
	80	50	215	140	30	3	8-23	100	235	190	160	24	3	8-23	175	160	730
	100	65	250	168	32	3	8-26	125	270	220	188	28	3	8-25	220	200	800
	100	65	250	168	32	3	8-26	150	300	250	218	30	3	8-26	220	200	892
	150	100	345	240	38	3	8-34	200	375	320	282	38	3	12-30	280	280	1,135
	200	125	405	300	44	3	12-36	250	450	385	345	42	3	12-34	300	295	1,135
TFA48Y-100 TFA48sB-100 TFA48Y-100I TFA48sH-100I TFA48Y-100V TFA48sB-100V	25	16	140	78	24	2	4-18	32	140	100	78	18	2	4-18	110	100	429
	32	20	155	82	24	2	4-23	40	150	110	85	18	3	4-18	130	110	421
	40	25	170	95	26	3	4-23	50	165	125	100	20	3	4-18	135	120	540
	50	32	195	112	28	3	4-26	65	185	145	120	22	3	8-18	160	130	618
	50	32	195	112	28	3	4-26	80	200	160	135	22	3	8-18	160	145	710
	65	40	220	138	32	3	8-26	80	200	160	135	22	3	8-18	175	160	710
	80	50	230	148	34	3	8-26	100	235	190	160	24	3	8-23	175	160	730
	100	65	265	172	38	3	8-30	125	270	220	188	28	3	8-25	220	200	800
	100	65	265	172	38	3	8-30	150	300	250	218	30	3	8-26	220	200	892
	150	100	355	250	46	3	12-34	200	375	320	282	38	3	12-30	280	280	1,135
	200	125	430	312	54	3	12-36	250	450	385	345	42	3	12-34	300	295	1,135
TFA48SH-40	50	32	160	105	38	3	4-18	80	195	160	135	20	3	8-18	124	137	525
TA48TH-100	50	32	195	112	50	3	4-26	80	200	160	135	22	3	8-18	160	145	580
TFA48sB-160	80	40	260	168	65	15	8-30	150	300	250	218	30	3	8-25	215	210	1,175
